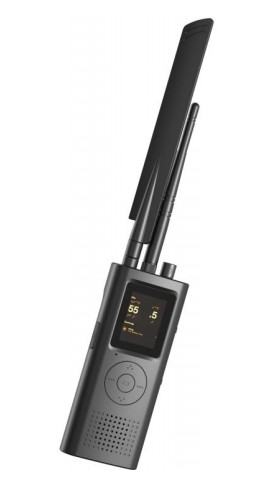

All-channel Drone Early Warning Device
Descriptions of All-channel Drone Early Warning Device
It is a handheld drone detection device that uses an external ultra-wideband antenna, it can detect FPV in all frequency bands on the market, as well as common consumer drones such as DJI and Autel and other commonly used consumer drones to achieve rapid detection and early warning through sound,light and other early warning, and at the same time in the complex electromagnetic environment to achieve a very low false alarm rate of False Alarm Rate.
With drone detection spectrum and full-band FPV analogue mapping signal detection. The device can accurately detect the spectrum information and FPV signals of drones in the warning range through the in-depth analysis of drone signals.
The equipment is suitable for all kinds of civil scenarios that require drone detection and countermeasures in the airspace, with rapid response, mobile deployment, and unobstructed access.It has the advantages of quick response, mobile deployment, and no restriction by network conditions, providing a reliable guarantee for low-altitude security.
Features of All-channel Drone Early Warning Device
Detecting Frequency:600MHz-6.2GHz
Specifications of All-channel Drone Early Warning Device
operating mode | Spectrum Detection/FPV Analogue Mapping Signal Detection |
Detection distance | DJI, Autel and other commonly used consumer drones ≥ 1km FPV analogue mapping signal detection ≥ 2km |
Detecting Drone Models | Full-band FPV and commonly used consumer drones such as DJI and Autel. |
Detection Feedback | Feedback on drone type when detected, triggering sound, light and vibration alarms |
Detecting Frequency Bands | 600MHz-6.2GHz |
Screen Specifications | 2.0 inch LCD/240(H)RGB x 320(V) |
| Power Consumption | ≤5w |
Power supply method | Built-in 7.4V 3000mAh lithium battery |
operating temperature | -20~+55℃ |
Ingress Protection Rating | IP55 |
| endurance | ≥4.5H |
| Weight | ≤300g |
| Product Dimensions | 175*67.8*34.26mm |
|
|
