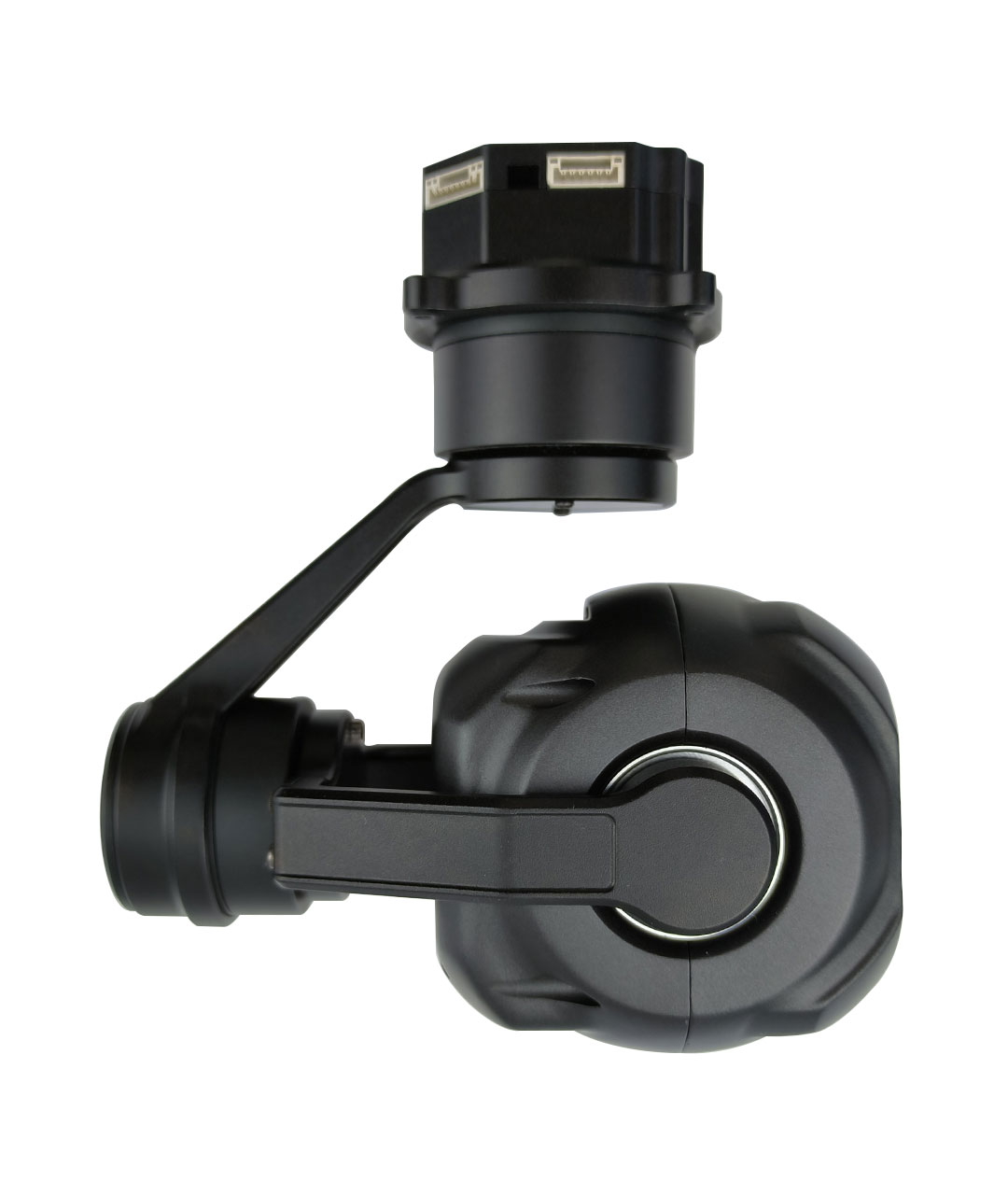

Small IRCUT 10x Optical zoom 3-Axis Gimbal camera, IP output
Descriptions of Small IRCUT 10x Optical zoom 3-Axis Gimbal camera, IP output
Is a drone gimbal integrated 90x mixed zoom camera and high-precision 3-axis stabilized PTZ. It adopts network IP output and control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, lightweight and low power consumption; Visible light camera adopts 2 mega effective pixel SENSOR. Both the serial port and the network can control the camera and PTZ, and support the local TF card to record and take pictures.
Functional Features:
90x Mixed zoom;
TF card storage
170ms low delay RTSP
IP contiol and output
Multiple control modes
Groud station display control
Light weight gimbal,360g
3-axis stabilizer
Specifications:
| Voltage | DC12V-26.2V | |
| Power Supply | Dynamic 5W | |
| Working Status | Roll Angle | -45°~+45° |
| Pitch angle | -45°~+120° | |
| Yaw angle | -280°~+280° | |
| Pitch and Roll Jitter angle | ±0.02° | |
| Horizontal jitter angle | ±0.03° | |
| One-click restore | One-click restore to the initial position | |
| adjustable gimbal speed | Low speed at big zom status and fast speed control at small zoom status.Adaptively speed control based on zooming of daylight sensor. | |
| Control way | IP,SBUS,UART control(Optional with PWM control) | |
| Visible light Camera | SENSOR | 1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR) |
| Optical Zoom | 10×HD optical zoom lens,f=5.15±5%~47.38±5%mm | |
| AF Time | Real time fast focusing,focusing time<1s | |
| video output | RTSP stream IP network output,4K 1080P video stream local TF card storage | |
| Local Record | Local TF record,H.264/H265 4K,1080P video stream local TF card storage | |
| Field Angle(FOV) | D:WIDE 69.5°±5% TELE7.95°±5% H:WIDE 61.5°±5% TELE7.00°±5% V:WIDE 35.0°±5% TELE39.7°±5% | |
| Support Mode | 1080P 30fps | |
| Device Size | Φ:148mm H:132mm | |
| Working Condition | -10℃ to +55℃/20% to 80% RH | |
| Storage Environment | -20℃ to +60℃/20% to 95% RH | |
| Mainly usage | UAV aerial photography | |
| Weights(Not including dampers) | 360±10g | |
|
|
