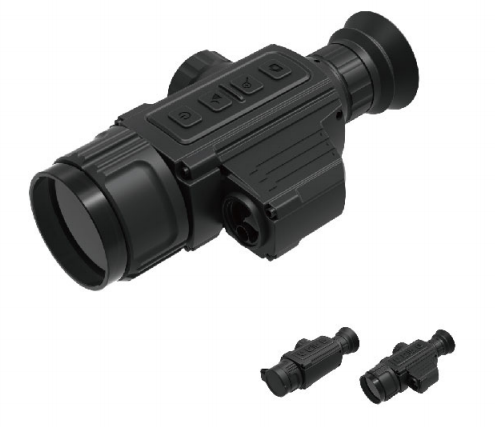

    Top- FW-RS519L Thermal Imaging Night Vision Device With Vanadium Oxide Uncooled Focal Plane Detection

    Ask Lasest Price
    Brand Name : Forward
    Model Number : FW-RS519L
    Payment Terms : L/C, T/T
    Supply Ability : 100 pcs/year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Top- FW-RS519L Thermal Imaging Night Vision Device With Vanadium Oxide Uncooled Focal Plane Detection

    Features of FW-RS519L Thermal imaging night vision device

    • 384*288 Vanadium Oxide Uncooled Focal Plane
    • High resolution 1440*1080,High-performance display.
    • With image WIFI transmission and built-in video recording and photo taking functions
    • 1000m precise laser distance measurement
    • IP66 waterproof and dustproof

    Specifications of FW-RS519-640 Thermal imaging night vision device


    Detector TypeVanadium Oxide Uncooled Focal Plane
    Resolution640*512
    Pixel spacing12μm
    NETD≤35mk@25℃
    Frame rate50Hz
    Focal distance35mm/F1.0
    FOV7.5°*5.7°
    Image modeWhite hot, black hot, red hot.iron red
    Basic magnification2.3x
    Image transmissionWIFI Real-time image transmission, supports mobile phone APP image browsing, photo taking and video recording functions
    FocusManual focus
    Display0.39inch,color OLED,resolution1440*1080
    Humidity0-95%
    Electronic zoomX2,X4
    BatteryLithium battery,>5h
    Basic magnification3.26x~13.04x
    Eyepiece magnification15x
    Laser Distance MeasurementWavelength:905nm,Measuring range:Longest1000m,Shortest10m.
    Protection levelIP66
    Down1m
    Woking Temperature-30℃~+55℃
    Storage temperature-40℃~+70℃
    Weight520g;With laser ranging function 582g
    Size190mm*80mm*65mm;With laser ranging function 190mm*110mm*65mm
    Detection distancePepole 1.8m*0.5m 1400m
    Car 2.3m*2.3m 2200m
    Identification distancePepole 1.8m*0.5m 700m
    Car 2.3m*2.3m 1100m
