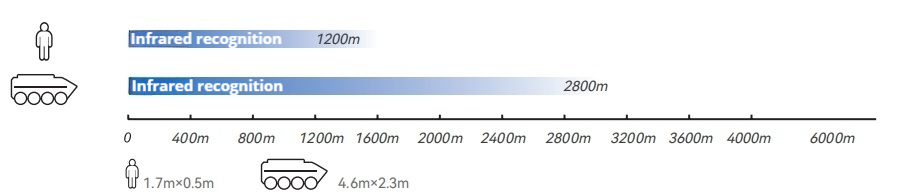

2800m Detection Distance FW-XF5U Binocular Infrared Observation Instrument For Infrared Night Vision Reconnaissance

XIXIAN FORWARD TECHNOLOGY LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2800m Detection Distance FW-XF5U Binocular Infrared Observation Instrument For Infrared Night Vision Reconnaissance from wholesalers

    Buy cheap 2800m Detection Distance FW-XF5U Binocular Infrared Observation Instrument For Infrared Night Vision Reconnaissance from wholesalers
    • Buy cheap 2800m Detection Distance FW-XF5U Binocular Infrared Observation Instrument For Infrared Night Vision Reconnaissance from wholesalers

    2800m Detection Distance FW-XF5U Binocular Infrared Observation Instrument For Infrared Night Vision Reconnaissance

    Ask Lasest Price
    Brand Name : Forward
    Model Number : FW-XF5U
    Payment Terms : L/C, T/T
    Supply Ability : 100 pcs/year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    2800m Detection Distance FW-XF5U Binocular Infrared Observation Instrument For Infrared Night Vision Reconnaissance

    Descriptions of FW-XF5U Binocular infrared observation instrument


    MP5-U is a binocular uncooled infrared observation instrument that integrates multiple functions such as infrared night vision reconnaissance, laser ranging, positioning and orientation. The product is equipped with the latest infrared image processing algorithm and is designed for all-weather applications that require enhanced images and long-distance detection. The built-in GPS, DMC and laser ranging modules can tell users the precise target range and location. It can be widely used in various scenarios such as night law enforcement, police security, environmental monitoring, terrain mapping and target reconnaissance.


    Specifications of FW-XF5U Binocular infrared observation instrument


    Infrared thermal imagingDetectorUncooled focal plane, 640×512, 12 μm
    NETD≤ 40 mK
    FOV8.8° ×7°
    Laser Distance MeasurementWavelength905nm
    Range10m~1.5Km
    Accuracy±2m
    Laser pointerVisible laser520nm 30mW
    LocationSelf-positioning accuracyHorizontal 5m, Elevation 10m
    Target positioning accuracy≤ 20m@1Km
    DirectionalAzimuth accuracy1° (RMS)
    Pitch angle accuracy0.5° (RMS)
    DisplayDisplay type1920x1080, OLED, Binocular
    Vision adjustment-5-(+5)
    StorageCapacity32GB~256GB
    PowerVideo ≥ 4 hours; BMP images ≥ 10,000
    Power supplyBattery TypeICR 18650, 4 sections
    Battery life≥ 6 h
    InterfaceData InterfaceUSB
    Video InterfacePAL
    Communication interfaceRS232
    External power supplyDC 12V (±3V)
    WiFiVideo transmission, function control
    Physical propertiesSize185mm×170mm×80mm (L×W×H)
    Weight≤ 1.4 Kg (including battery and lens cover)
    Protection levelIP65
    Operating temperature-20℃ ~ +55℃
    Storage temperature-40℃ ~ +70℃
