ADTS100A1 Three Axis Three Light Pod

Product overview

The adts100a1 photoelectric pod integrates a laser semiconductor rangefinder with a maximum measuring range of 1.2km and an accuracy of less than 2 meters, a 640×512 high-resolution infrared camera, a 10x optical variable visible light camera and a platform frame with high stable accuracy, which can work during the day and at night, and can excellent complete inspection, security and search and rescue and other industry applications. The image can be collected from a distance to locate the point of interest. 1080p full hd video can output visible and infrared video in real time.

Product features

• Advanced image processing algorithm can provide clear images with high temperature resolution, clear outline and wide dynamic range, reflecting subtle temperature difference, so that the target is clear at a glance;
• 4 times digital zoom, 8 kinds of false color belts, more adaptable to the scene;
• Rich osd information, real-time display of operating status, operation more safe, reliable and convenient;
• 10x optical multiplier, remote image acquisition, more secure;
• 1080p image compression storage, with 32g capacity memory card, so that the image acquisition ability is stronger;
• Use military-grade alloy materials, with high integration structure design, more reliable industrial-grade chips, even in harsh environments can be stable operation, environmental adaptability is stronger;
• Compared with the large camera equipped with the same level of camera, small size, light weight, rich functions, easy to carry, high safety, operation difficulty is greatly reduced;
• High precision imu design to ensure image stability, but also have higher working reliability, to ensure the reliable acquisition of images at key moments;
• Provides three modes of locking head direction, weak follow motor head direction and lens vertical down, the three modes can be switched at will, and the use of more convenient;
• Communication interface support rs422, rs232, ttl and other interfaces, can be matched with a variety of aircraft, strong compatibility;

Application

• UAV

Technical parameters

Mechanical Dimensions And Mounting Interfaces

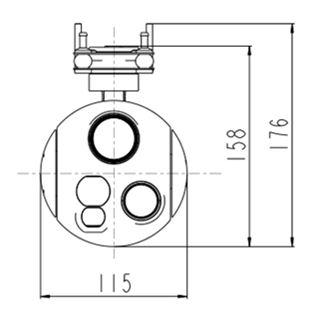

Figure 1 Mechanical Dimensions Of The Product

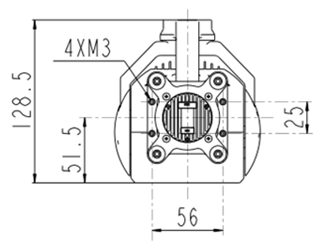

Figure 2 Product Installation Interface Diagram
