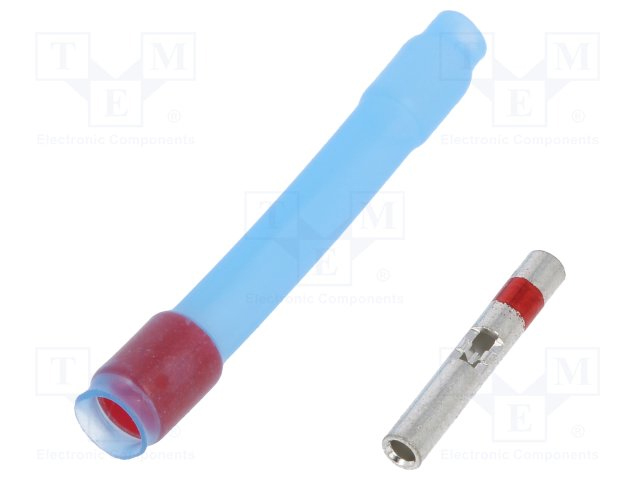

    Aviation Parts D-436-36 Butt Splice Terminal Solder Sleeves & Shield Tubing

    Ask Lasest Price
    Model Number : D-436-36
    Payment Terms : L/C, T/T
    Price : Negotiable
    • Product Details
    • Company Profile

    Aviation Parts D-436-36 Butt Splice Terminal Solder Sleeves & Shield Tubing

    Aviation Parts D-436-36 Butt Splice Terminal Solder Sleeves & Shield Tubing


    Descriptions of Aviation Parts:

    • MIL Specification [MIL-S-81824]
    • Splice Type = Butt [in-line]
    • Silver Wire Material, Tin Wire Material
    • Crimp Barrel Size = 304 - 1510 CMA
    • Side 1 Max. # of Wires = 2

    Features of Aviation Parts:

    • Splice Type = Butt [in-line]
    • Wire Material = Silver, Tin
    • Connection Type = Crimp
    • Color Code = Red
    • Crimp Barrel Size (CMA [mm²]) = 304 – 1510 [0.15 – 0.75]
    • Crimp Barrel Plating = Tin
    • MIL Specification [MIL-S-81824] = Yes
    • Side 1 Max. # of Wires = 2
    • Side 2 Max. # of Wires = 2
    • Side 1 Sealing Insert I.D. (mm [in]) = 2.16 [0.085]
    • Side 2 Sealing Insert I.D. (mm [in]) = 2.16 [0.085]

    Specifications of Aviaiton Parts:


    Product AttributeAttribute Value
    Product Category:Solder Sleeves & Shield Tubing
    RoHS: Details
    Type:Splice
    Material:Polyvinylidene Fluoride (PVDF)
    Length:27.94 mm
    Maximum Temperature:+ 135 C
    Series: D-436
    Chemical Resistant:No
    Product Type:Solder Sleeves & Shield Tubing
    Factory Pack Quantity:100
    Subcategory:Wire & Cable Management
    Part # Aliases:650074-000
    Unit Weight:0.016826 oz
