    AT-LRF1104A Laser RangeFinders Module Eye-Safe 2500m Laser Wavelength 1.55um

    Ask Lasest Price
    Brand Name : Forward
    Model Number : AT-LRF1104A
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets/years
    Delivery Time : 12-14 weeks
    Price : Negotiable
    • Product Details
    • Company Profile

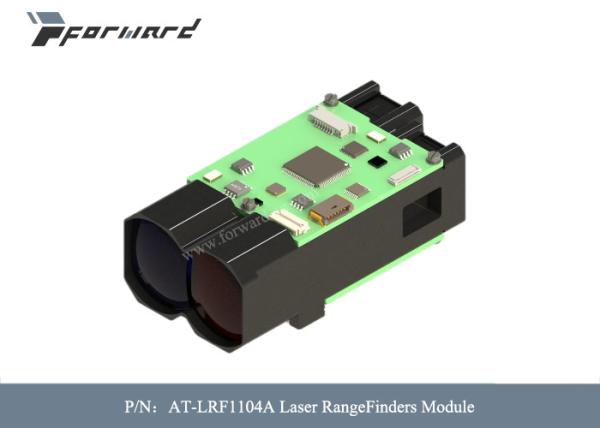

    AT-LRF1104A Laser RangeFinders Module Eye-Safe 2500m Laser Wavelength 1.55um

    Laser RangeFinders Module AT-LRF1104A Eye-Safe 2500m Laser Wavelength 1.55μm


    Descriptions of Laser RangeFinders Module:


    The AT-LRF1104A laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.


    Features of Laser RangeFinders Module:

    • small and light
    • Hight ranging accuracy
    • Good acclimatization
    • High reliability

    Applications of Laser RangeFinders Module:

    • Optical sight equipments
    • Optoelectronic system
    • UAV

    Specifications of Laser RangeFinders Module:


    Laser Wavelength1.55μm
    Maximum Measuring Range≥4000m
    Minimum Measuring Range≤50m
    Ranging Accuracy≤ 2m
    Repetition Frequency≥1~ 5Hz
    Accurate Rate≥ 98%
    Beam Angle≤1.2mrad
    Volume≤92mmx50mmx34mm
    Weight≤115g
    Supple Voltage12V
    Operating Temperature-40℃~+55℃
