    10000m Laser Rangefinder Module Micro Thermal Camera Module 1.54μM

    Ask Lasest Price
    Brand Name : Forward
    Model Number : AT-LRF2210
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets/years
    Delivery Time : 12-14 weeks
    Price : Negotiable
    • Product Details
    • Company Profile

    10000m Laser Rangefinder Module Micro Thermal Camera Module 1.54μM

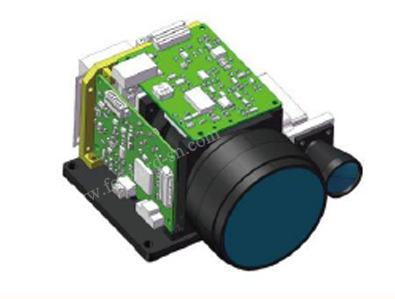

    Laser RangeFinders Module AT-LRF2210 Eye-Safe ≥10000m Laser Wavelength 1.54μm


    Descriptions of Laser RangeFinders Module:

    The AT-LRF1206A laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.


    Features of Laser RangeFinders Module:

    • small and light
    • Hight ranging accuracy
    • Good acclimatization
    • High reliability

    Applications of Laser RangeFinders Module:

    • Optical sight equipments
    • Optoelectronic system
    • UAV

    Specifications of Laser RangeFinders Module:


    Laser Wavelength1.54μm
    Maximum Measuring Range≥10000m
    Minimum Measuring Range≤80m
    Ranging Accuracy≤ 2m
    Repetition Frequency≥1~ 5Hz
    Accurate Rate≥ 98%
    Beam Angle≤0.4mrad
    Volume≤101mm×71mm×53mm
    Weight≤220g
    Supple Voltage9~18 V
    Operating Temperature-40℃~+55℃
