    Weight ≤960g Electro Optical Zoom Pod Visible Laser Thermal Imaging Camera On Drone

    Ask Lasest Price
    Brand Name : Forward
    Model Number : Eagle-Eye960 Infrared 、Visible & Laser Pod
    Payment Terms : L/C, T/T
    Supply Ability : 500 pcs/years
    Delivery Time :
    Price : Negotiatable
    • Product Details
    • Company Profile

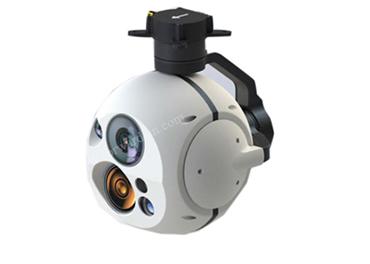

    Weight ≤960g Electro Optical Zoom Pod Visible Laser Thermal Imaging Camera On Drone

    Electro Optical Pod Eagle-Eye960 Infrared ,Visible & Laser Pod Weight ≤960g


    Descriptions of Electro Optical Pod:


    Eagle-eye960 photoelectric pod is equipped with visible light TV, cooling infrared thermal imager and laser range finder. It has the characteristics of good stability, good observation effect, general purpose and high reliability. It can be used to perform tasks such as target search, capture, identification and tracking, and is suitable for various aircraft and vehicle platforms.


    Features of Electro Optical Pod:


    • Multi-sensor intelligent linkage, complementary advantages, to meet the needs of multiple operations
    • Visible light fixed focus and zoom complement each other, and the overall situation and details can be seen²
    • High-definition infrared thermal imaging, breaking through visual limitations, no matter day or night²
    • High-precision laser ranging, target positioning, unparalleled²
    • Intelligent tracking, precise reshooting, ultra-clear images, and diversified functions²


    Specifications of Electro Optical Pod:

    ParameterEagle-eye960
    DescriptionTypegyrostabilization
    Weight≤960g
    FeaturePlatform typetriaxial
    Headingn×360°zui
    Pitch-110°~+110°
    Roll-50°~+50°
    Maximum Angular≥100°/ s
    Maximum Angular Acceleration≥90°/ s2
    Angular Position Accuracy≤0.3°
    Visible LightResolution30x zoom imaging1920×1080 @60fps
    Fixed focus imaging
    Field Angle30x zoom imaging63°×35°~2.3°×1.3°
    Fixed focus imaging38.4°×22.2°(8mm)
    InfraredResolution640×512@60fps
    Field Angle(Focus)12°×9°(35mm)
    Tracking ModuleTracking Velocity±48 Pixel/frame @60fps
    Laser RangingMeasuring Range≥3km
    Accuracy±2m
    InterfaceControl InterfaceRS232
    TV-outnetwork /SDI
    Power SupplyVoltage11~16V
    Poweraverage≤10W ,Max≤16W
    EnvironmentalOperating Temperature-20℃~+60℃
    Storage Temperature-40℃~+60℃
