    Gyrostabilization 320g Electro Optical Pod Infrared Pod Heading N×360°

    Ask Lasest Price
    Brand Name : Forward
    Model Number : Eagle-eye320 Infrared pod
    Payment Terms : L/C, T/T
    Supply Ability : 500 pcs/years
    Delivery Time :
    Price : Negotiatable
    • Product Details
    • Company Profile

    Gyrostabilization 320g Electro Optical Pod Infrared Pod Heading N×360°

    Electro Optical Pod Eagle-eye320 Infrared pod Weight ≤320g Heading n×360°


    Descriptions of Electro Optical Pod:

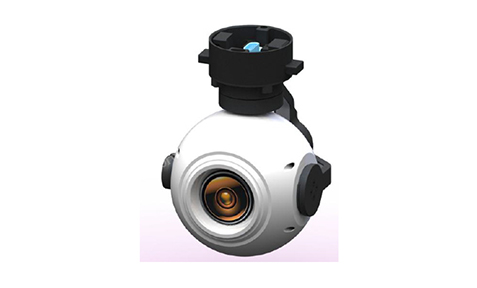

    Eagle-eye320 photoelectric pod is equipped with visible light TV, cooling infrared thermal imager and laser range finder. It has the characteristics of good stability, good observation effect, general purpose and high reliability. It can be used to perform tasks such as target search, capture, identification and tracking, and is suitable for various aircraft and vehicle platforms.


    Features of Electro Optical Pod:

    • Quick-release structure design, easy to quickly replace the load with one hand
    • Extremely light and small, weight ≤320g²
    • Support full range of heading (360°) rotation²
    • Long infrared recognition distance, ≥1.6km (vehicle)²

    Specifications of Electro Optical Pod:


    ParameterEagle-eye320
    DescriptionTypegyrostabilization
    Weight≤320g
    FeaturePlatform typetriaxial
    Headingn×360°
    Pitch-110°~+110°
    Roll-50°~+50°
    Maximum Angular≥100°/ s
    Maximum Angular Acceleration≥90°/ s2
    Angular Position Accuracy≤0.3°
    InfraredResolution640×512@60fps
    FOV(Focus)18°×14°
    Tracking ModuleTracking Velocity±48 Pixel/frame
    InterfaceControl InterfaceRS232/ network TCP
    TV-outnetwork
    Power SupplyVoltage11~16V
    PowerAverage≤10W ,Max≤16W
    EnvironmentalOperating Temperature-20℃~+60℃
    Storage Temperature-40℃~+60℃
