    Compact and Powerful 4K Resolution 10x Optical Zoom 3-Axis Small Gimbal for Any Project

    Ask Lasest Price
    Brand Name : Forward
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 pcs/years
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Compact and Powerful 4K Resolution 10x Optical Zoom 3-Axis Small Gimbal for Any Project

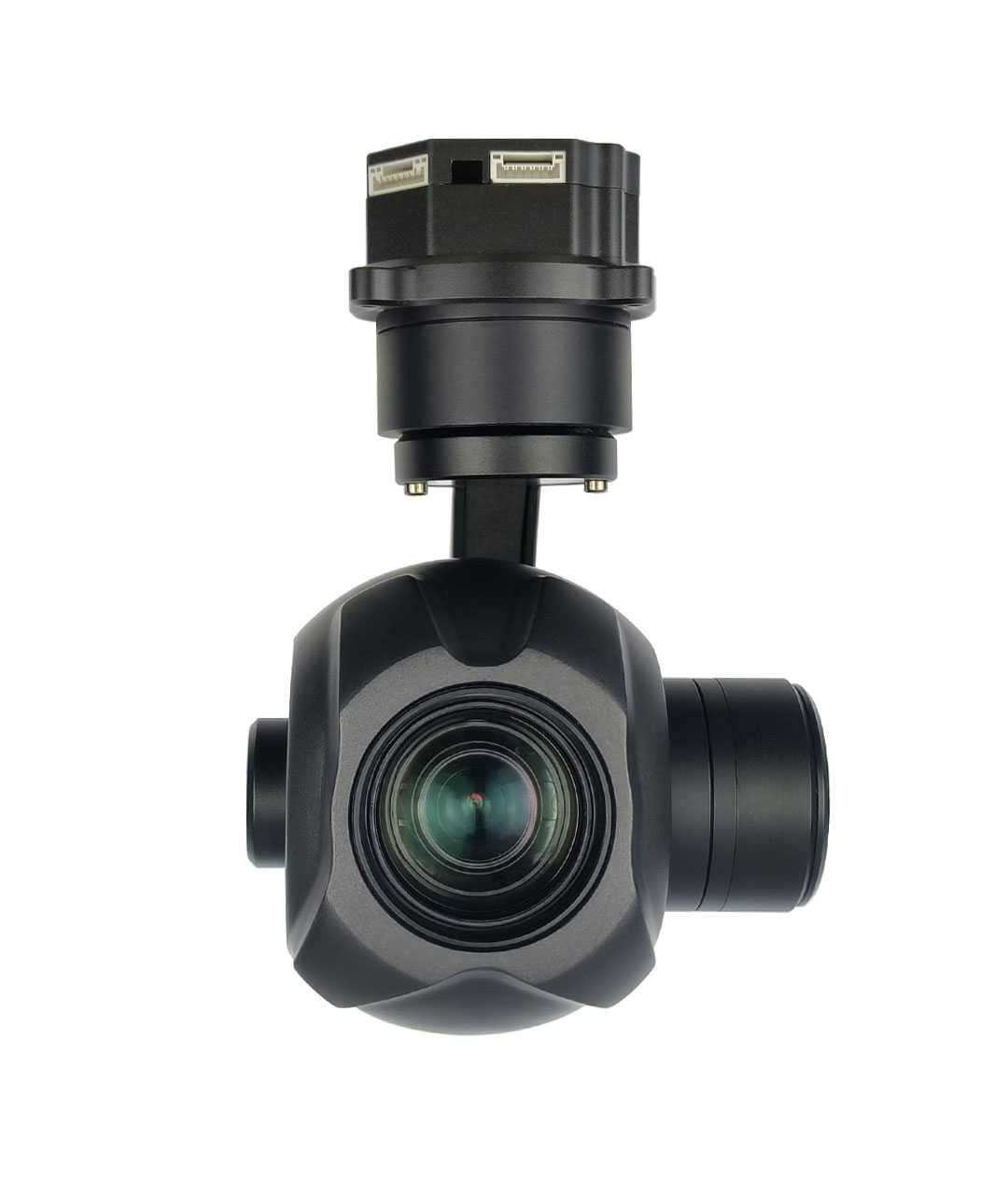

    4K resolution 10x optical zoom 3-axis small gimbal

    Descriptions of 4K resolution 10x optical zoom 3-axis small gimbal:

    4K is a single EO small gimbal integrated a 4K resolution 90x mixed zoom camera and a high-precision 3-axis stabilizing PTZ. It adopts network IP output and control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, lightweight and low power consumption; The visible light camera adopts 8 mega effective pixel COMS SENSOR. The system supports serial port, network, and SBUS control cameras and PTZ, RTSP stream output, supporting local TF storage.

    Feature:

    90x mixed zoom 4K resolution;

    170ms low delay RTSP output;

    IP control and output;

    Ground station display&control;

    Light weight gimbal,360g;

    TF card storage.

    Specifications:


    VoltageDC 12V-26.2V
    Power SupplyDynamic 5W
    Gimbai FeatureRoll Angle-45°~+45°
    Pitch angle-45°~+120°
    Yaw angle-290°~+290°
    Pitch and roll jitter angle±0.02°
    Horizontal jitter angle±0.03°
    One-click restoreOne-click restore to the initial position
    adjustable gimbal speedLow speed at big zom status and fast speed control at small zoom status.Adaptively speed control based on zooming of daylight sensor.
    Control wayIP,SBUS,UART control(Optional with PWM control)
    Visible light Camera
    Para
    Sensor1/2.8 inch 8 mega effective pixels CMOS SENSOR
    Optical zoom10x HD optical ZOOM LENS,f=5.15±5%~47.38±5%mm
    AF timeReal time fast focusing,focusing time<1s
    video outputRTSP strem IP network output,4K 1080P video stream local TF
    card storage
    Field angle(FOV)D:WIDE 69.5°±5% TELE7.95°±5%
    H:WIDE 61.5°±5% TELE7.00°±5%
    V:WIDE 35.0°±5% TELE3.97°±5%
    DimensionsΦ:148mm H:132mm
    Working environment-10℃ to +55℃/20% to 80% RH
    Storage environment-20℃ to +60℃/20% to 95% RH
    Main applicationsUAV aerial photography
    Weights360±10g
